HIGH-PRECISION DOMESTIC FABRICATION

India's Premier Quick-Turn PCB Prototype & Manufacturing

Manufacture high-quality single & double-sided FR4 PCBs with instantaneous online DFM quote, true 2D/3D Gerber vector viewer, 100% flying probe electrical testing, and rapid express delivery across India via Airways Courier & DTDC.

Starts from ₹199 / 5 pcs
24-48h Quick Turn
100% E-Tested
Airways Courier Tracking
Calculate Instant Price Upload Gerber

Instant PCB Quote

Select specs to get an immediate estimated fabrication rate

11:00 AM Factory Cut-Off Live
Order within --h --m --s for Day 1 Dispatch
Drop Gerber (.ZIP / .RAR) File Auto-detects board dimensions & generates 2D/3D view
Estimated Total: ₹199

Airways & DTDC Live Parcel Tracking

Track your ongoing PCB batch in real-time. Direct synchronization with Airways Courier, DTDC, and BlueDart, plus destination branch office address for urgent self-collection.

15-SEC VISUAL GUIDE

Instructions for Ordering Bare PCBs Online

Watch how fast and simple it is to get your single & double-sided FR4 PCBs fabricated and delivered in India

How to Order Walkthrough

Add Gerber Archive

Supports .zip, .rar from KiCad, Altium, EAGLE, EasyEDA

Browse PCB Gerber File
Auto-detects dimensions 100% Confidential Instant 2D/3D Layers
Step 01 / 04

1. Upload Your Gerber Archive

Simply drag and drop your exported ZIP file. Our vector pre-flight engine instantly extracts board boundary coordinates, calculates board area, and prepares 2D and 3D previews.

Try Uploading Gerber
Base Material FR-4 Standard (Tg 130–140°C)
Layer Count:
1 Layer (Single-Sided) 2 Layers (Double-Sided)
Dimensions 100 × 100 mm
Quantity 5 pcs (Prototype)
Step 02 / 04

2. Select Single or Double-Sided FR4

Configure your exact prototype requirements: 1-layer single-sided or 2-layer double-sided FR4, board thickness from 0.8mm to 2.0mm, and green, matte black, blue, or red solder mask colors.

Select Board Specs
Bare PCB Special Offer: ₹199 / 5 pcs
100% Flying Probe E-Test: INCLUDED (₹0)
18% GST ITC Claim: Tax Invoice Generated
Production Build Time: 24–48 Hours
Transparent domestic Indian pricing • Zero hidden fees
Step 03 / 04

3. Transparent Instant Price Quote

No waiting days for email quotes! Our calculator computes your fabrication cost instantly in Indian Rupees (INR) with full GST tax invoice breakdown for 18% Input Tax Credit.

Calculate Instant Price

Airways Courier & DTDC Dispatch

Dispatched from Bengaluru Hub
• Anti-static moisture barrier vacuum packaging
• Live GPS consignment tracking via AWB number
• Destination branch phone number for urgent pickup
Next-day delivery to major Indian metros
Step 04 / 04

4. High-Speed Doorstep Delivery

Once boards pass 100% flying probe testing, they are vacuum sealed with desiccant and handed over directly to express domestic air courier partners for swift delivery across India.

Order Your PCB Now
0:00 / 0:15
BENGALURU FABRICATION PLANT

Our High-Precision PCB Manufacturing Setup

Take a look inside our modern facility engineered specifically for quick-turn single & double-sided FR4 fabrication

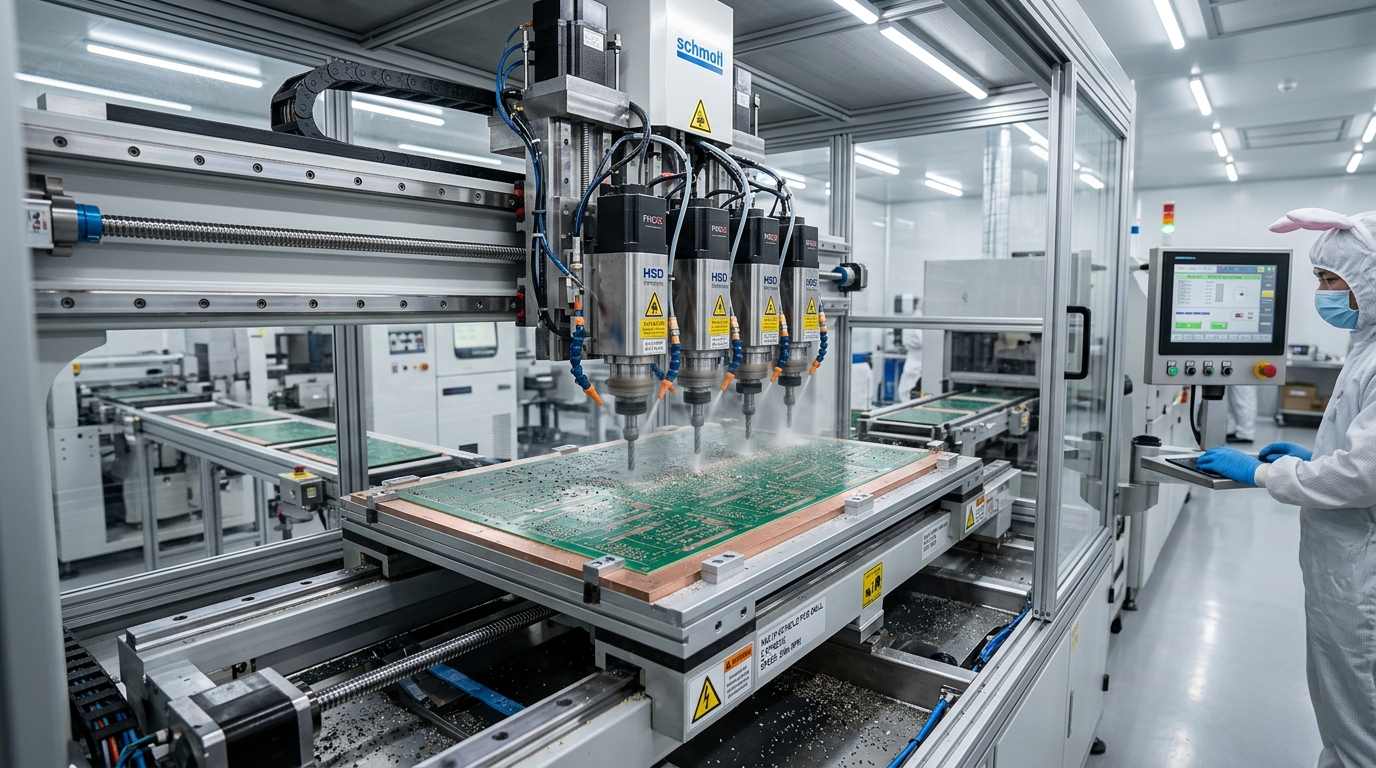

High-Speed Multi-Spindle CNC PCB Drilling Machine TOLERANCE ±0.05 MM

High-Speed CNC Spindle Drilling

Automated 60,000 RPM multi-spindle drilling ensures clean hole walls for through-hole plating down to 0.20 mm (8 mil) with laser tool-wear compensation.

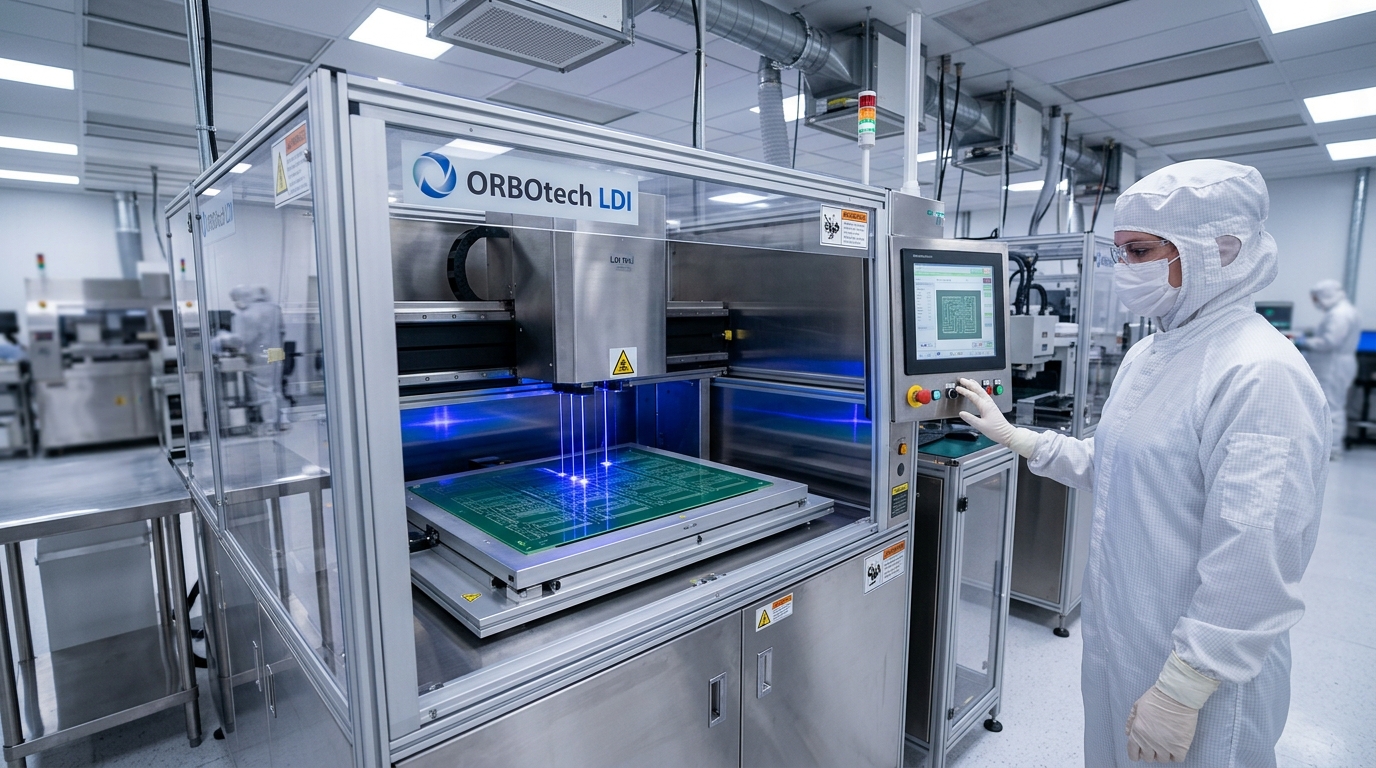

Cleanroom Laser Direct Imaging (LDI) Station 3.5 MIL TRACE / SPACE

Laser Direct Imaging (LDI) Cleanroom

Sub-micron optical direct laser imaging eliminates traditional photo-film distortion, enabling crisp 3.5 mil track widths and high-density IC pad definitions.

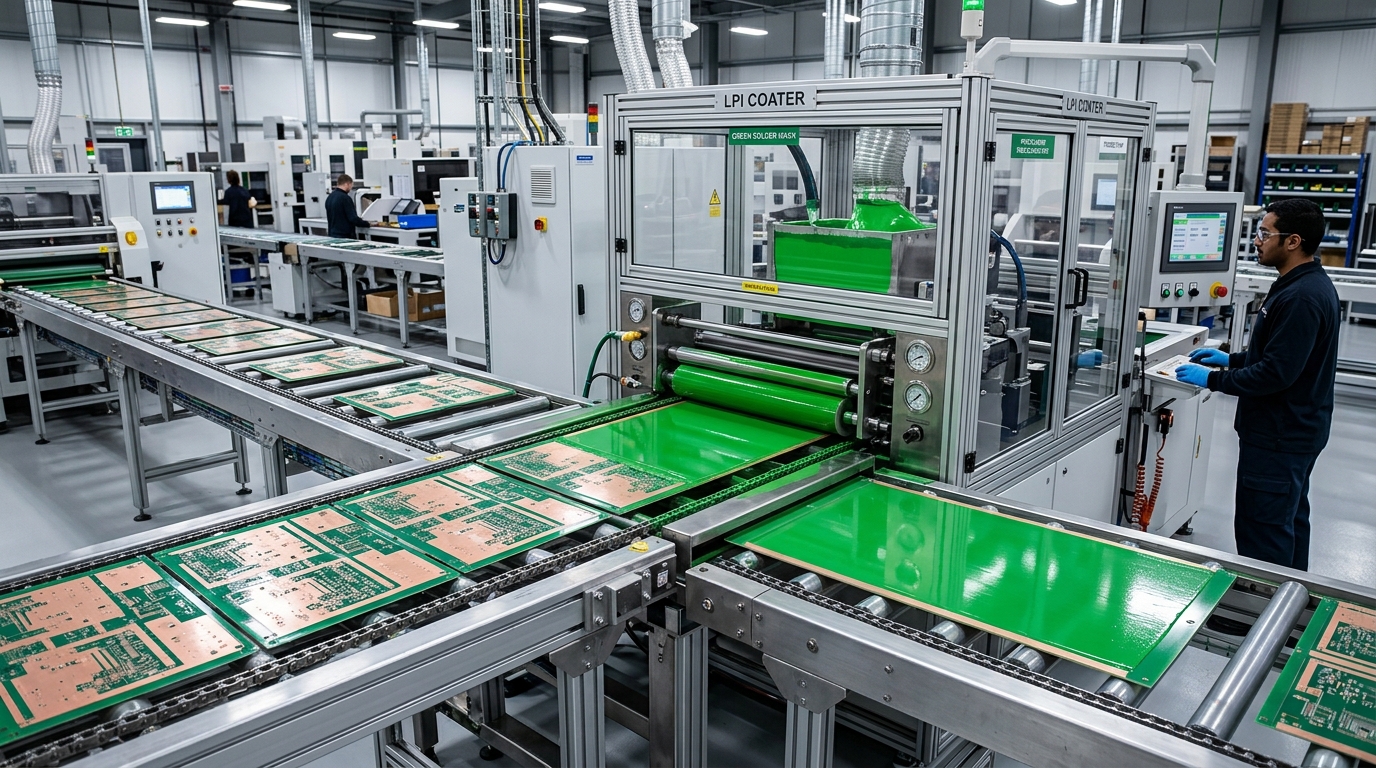

Liquid Photoimageable (LPI) Solder Mask Coating Line CLASS-A RESIST

LPI Solder Mask & Legend Printing

Conveyorized Liquid Photoimageable (LPI) coating and high-intensity UV curing provide superior solder resistance, high dielectric strength, and sharp white silkscreen.

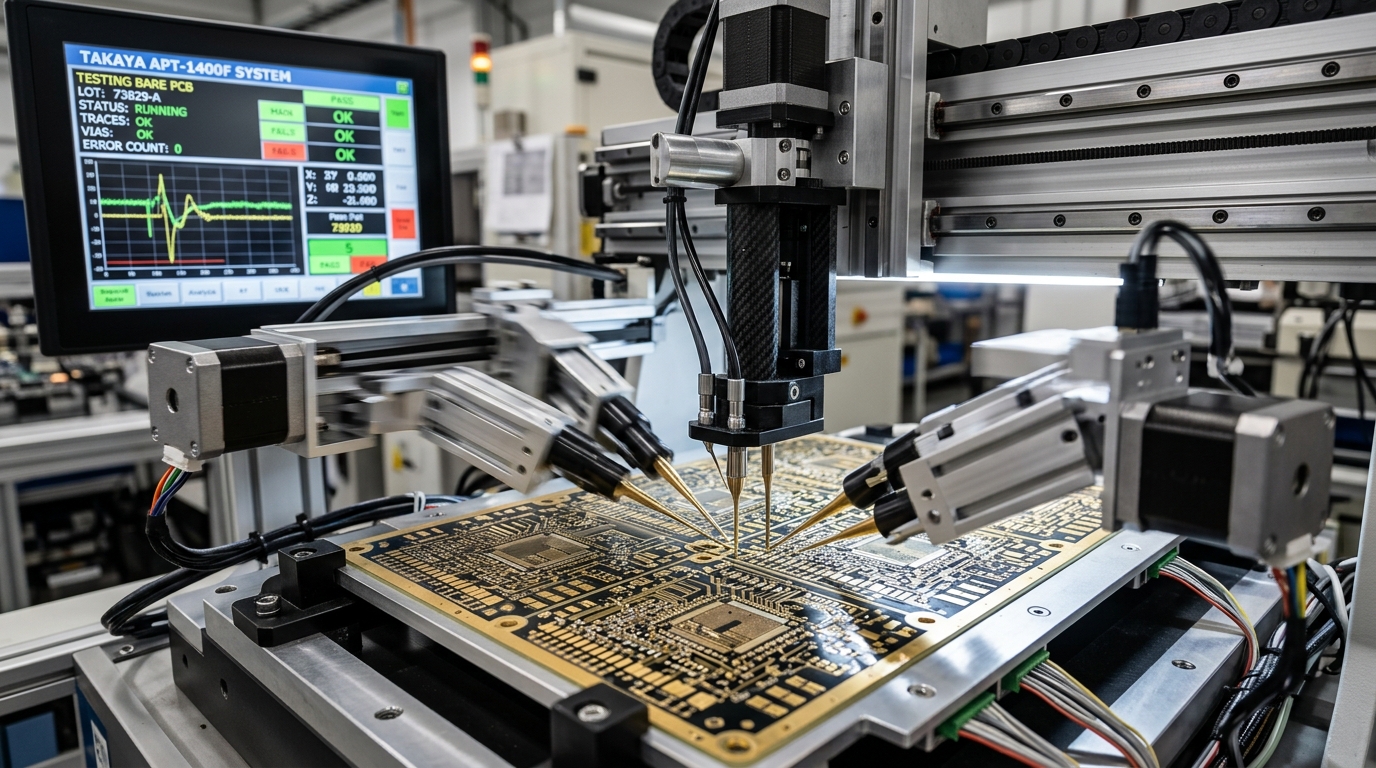

100% Flying Probe Electrical Testing Machine 100% NETLIST VERIFIED

100% Flying Probe Electrical Testing

Dual-head micro-needle robotic flying probe testers inspect 100% of nets and vias against your original Gerber files, guaranteeing zero shorts and zero open circuits.

Precision Manufacturing Capabilities

Benchmarked against industry-standard DRC guidelines for hobbyists, engineers, and high-volume manufacturers

Parameter Standard Capability Advanced Option
Layers 1 Layer (Single-Sided FR4) 2 Layers (Double-Sided FR4)
Min Trace / Spacing 3.5 mil / 3.5 mil (0.09 mm) 3.0 mil / 3.0 mil (Ultra-fine pitch)
Min Drill Size 0.20 mm (8 mil) CNC Drill 0.15 mm Laser Microvias
Surface Finishes Lead-Free HASL (RoHS), Leaded HASL ENIG (Immersion Gold 1-2 μ"), OSP
Solder Mask Colors Green, Matte Black, Blue, Red, Yellow, White Custom LPI Solder Mask
Electrical Testing 100% Flying Probe E-Test Included AOI + Impedance Verification Report
View Complete DRC Specification Guide
VERIFIED TESTIMONIALS

What Our Customers Say

Read real experiences from hardware engineers, IoT founders, and embedded developers across India

"We urgently needed 20 double-sided FR4 prototype boards for an automotive IoT client demo. Vincita fabricated and dispatched them within 48 hours via Airways Courier. Solder mask coverage, HASL pad flatness, and silkscreen readability were immaculate. Easily on par with international fab houses, but domestic and completely hassle-free."
FR-4 • 2-Layer • Green • Lead-Free HASL Verified Buyer
"The 100% flying probe electrical testing provides complete peace of mind. We had tight 3.5-mil pitch breakout tracks for an STM32 MCU, and all boards powered up flawlessly on the bench without a single solder bridge or trace defect. Having the GST ITC invoice ready upon dispatch makes company expense reimbursement completely seamless."
FR-4 • 2-Layer • Matte Black • Lead-Free HASL Verified Buyer
"Starting at ₹199 for 5 boards with instant online pricing is game-changing for Indian hardware startups. The live Gerber viewer caught an incorrect board outline before manufacturing, saving us valuable time and money. The boards arrived securely sealed in anti-static ESD moisture bags. Highly recommended!"
FR-4 • 1-Layer • Blue • Standard HASL Verified Buyer

Why Engineers Trust Vincita Circuits

Combining domestic Indian manufacturing speed with world-class quality standards

Made In Bengaluru, India

No customs delays, import duties, or international currency exchange overheads. Fast domestic dispatch with next-day express delivery to major metros.

100% GST Tax Invoices (ITC)

Every order comes with a legitimate GST tax invoice with HSN code 85340000. Your company can claim the full 18% GST Input Tax Credit easily.

Airways Pincode Speed Optimizer

Smart algorithm selects the optimal courier partner (Airways Courier, DTDC, BlueDart) for your specific 6-digit pincode, with optional hub self-collection contacts.

Frequently Asked Questions

Everything you need to know about ordering PCBs with Vincita

What Gerber format files are required?

We accept standard RS-274X Gerber archives (.zip / .rar) generated by Altium Designer, KiCad, Autodesk EAGLE, EasyEDA, or Proteus, containing top/bottom copper (.gtl/.gbl), solder mask (.gts/.gbs), silkscreen (.gto/.gbo), outline (.gm1/.gko), and Excellon drill files (.drl/.txt).

Can I track shipments via Airways Courier?

Yes! Once dispatched, your AWB tracking number connects directly with Airways Courier and our live tracking portal, showing transit updates and destination branch office contact numbers.

How does Vincita guarantee bare PCB electrical quality?

Every single PCB prototype and production panel is 100% electrically tested using our robotic flying probe test systems (E-Test) alongside Automated Optical Inspection (AOI) to guarantee zero shorts, zero open circuits, and accurate hole plating before vacuum packaging.
